Hose stud straight 90°

Category：

Complete collection of Lubrication Accessories

Details

Product use

Used with high-pressure hose 8.6*4mm

Surface treatment instructions:

W1-Black zinc；
W2-Zinc nickel alloy；
W3-White zinc；
W4-Yellow zinc；

Tail groove：

Can be equipped with card slot

Product parameters

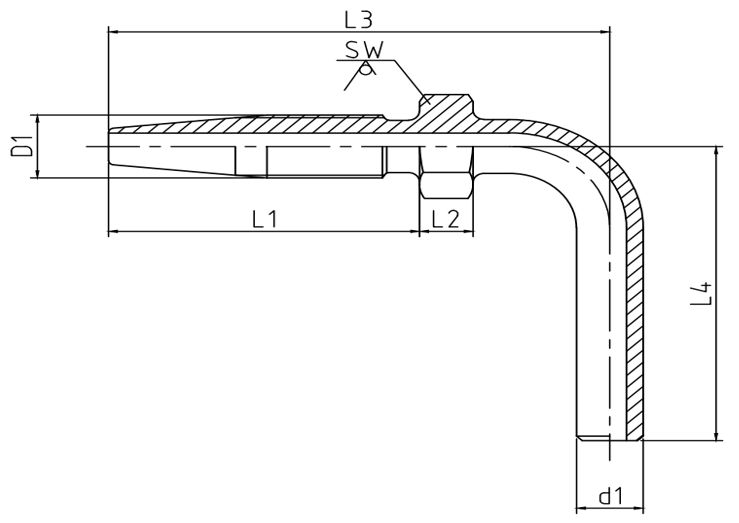

Model	Thread length	Hex thickness	Thread end size	Polished rod end size	Thread	Polished rod diameter	Hexagonal opposite side
Model	L1	L2	L3±1	L4±1	D1	d1	SW
K-149	25	6	45.1	20.7	M7×0.75	6	10
K-150	28	6	47	22	M7×0.75	6	10
K-151	28	6	45	28	M7×0.75	6	10
K-152	25	6	45	33	M7×0.75	6	10
K-153	25	6	59	38	M7×0.75	6	10
K-154	28	6	58	47	M7×0.75	6	10
K-155	25	6	60	41	M7×0.75	6	10
K-156	25	6	60	50	M7×0.75	6	10
K-157	28	6	57	35	M7×0.75	6	10
Surface treatment instructions： W1-Black zinc； W2-Zinc nickel alloy；W3-White zinc；W4-Yellow zinc；NUT-Card slot
