Advanced processing equipment
Details
|
Product use

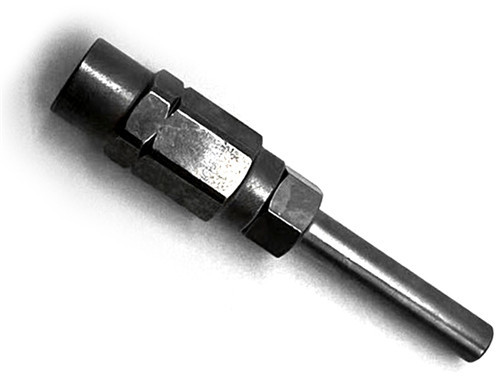

Used with high-pressure hose 8.6*4mm safety and environmental protection
Surface treatment instructions:
W1-Black zinc; W2-Zinc nickel alloy; W3-White zinc; W4-Yellow zinc;
Tail groove：
Can be equipped with card slot
|
 |
Product parameters

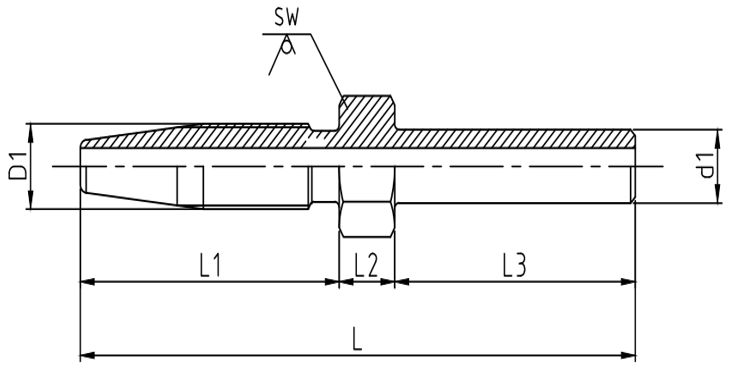

| Model | Total length | Thread length | Hex thickness | Thread end size | Thread | Polished rod diameter | Hexagonal opposite side |
| L | L1 | L2 | L3 | D1 | d1 | SW | |
| K-051 | 64 | 28 | 6 | 30 | M7×0.75 | 6 | 10 |
| K-053 | 61 | 25 | 6 | 30 | M7×0.75 | 6 | 10 |
| K-054 | 54 | 28 | 4.5 | 21.5 | M7×0.75 | 6 | 10 |
| K-055 | 60 | 28 | 6 | 26 | M7×0.75 | 6 | 10 |
| Surface treatment instructions： W1-Black zinc； W2-Zinc nickel alloy；W3-White zinc；W4-Yellow zinc；NUT-Card slot | |||||||
